Casa ProdottiElaborazione del carburo di tungstenoWC-10Ni Non-Magnetic Hard Alloy Tungsten Steel Slider with Permeability <1.002 and Remanence <0.05 mT for Semiconductor Equipment
WC-10Ni Non-Magnetic Hard Alloy Tungsten Steel Slider with Permeability <1.002 and Remanence <0.05 mT for Semiconductor Equipment
WC-10Ni Non-Magnetic Hard Alloy Tungsten Steel Slider with Permeability <1.002 and Remanence <0.05 mT for Semiconductor Equipment WC-10Ni Non-Magnetic Hard Alloy Tungsten Steel Slider with Permeability <1.002 and Remanence <0.05 mT for Semiconductor Equipment WC-10Ni Non-Magnetic Hard Alloy Tungsten Steel Slider with Permeability <1.002 and Remanence <0.05 mT for Semiconductor Equipment WC-10Ni Non-Magnetic Hard Alloy Tungsten Steel Slider with Permeability <1.002 and Remanence <0.05 mT for Semiconductor Equipment WC-10Ni Non-Magnetic Hard Alloy Tungsten Steel Slider with Permeability <1.002 and Remanence <0.05 mT for Semiconductor Equipment

WC-10Ni Non-Magnetic Hard Alloy Tungsten Steel Slider with Permeability <1.002 and Remanence <0.05 mT for Semiconductor Equipment

Dettagli:
Luogo di origine: Cina
Marca: Sanxin
Certificazione: ISO 9001
Numero di modello: SX1278
Termini di pagamento e spedizione:
Quantità di ordine minimo: 2
Tempi di consegna: 5-25 giorni
Termini di pagamento: T/T,L/C,Western Union
Contattaci
  • Informazioni dettagliate
  • Descrizione di prodotto

Informazioni dettagliate
Tolleranza: ±0,01 mm o ±0,001 mm Categorie: Trasformazione del carburo di tungsteno
Duttilità: Buona duttilità e macchinabilità Alta pressione: 350 MPA
Metodo di elaborazione: Taglio, frantumare, lucidante Oem: SÌ
Forma: Rotondo, Quadrato, Rettangolare Tipo di prodotto: Materiale industriale
Resistenza alla flessione: 2.000 MPA Modello: Fuoco di carburo di tungsteno
Finitura superficiale: Eccellente Dimensione del foro: 1.784 buco interno
Punto di fusione: 2,870°C Resistenza al calore: Nozzolo a buco profondo a carburo di tungsteno
Evidenziare:

WC-10Ni Non-Magnetic Hard Alloy Tungsten Steel Slider

,

Permeability <1.002 Tungsten Steel Slider

,

Remanence <0.05 mT Tungsten Steel Slider

Descrizione di prodotto

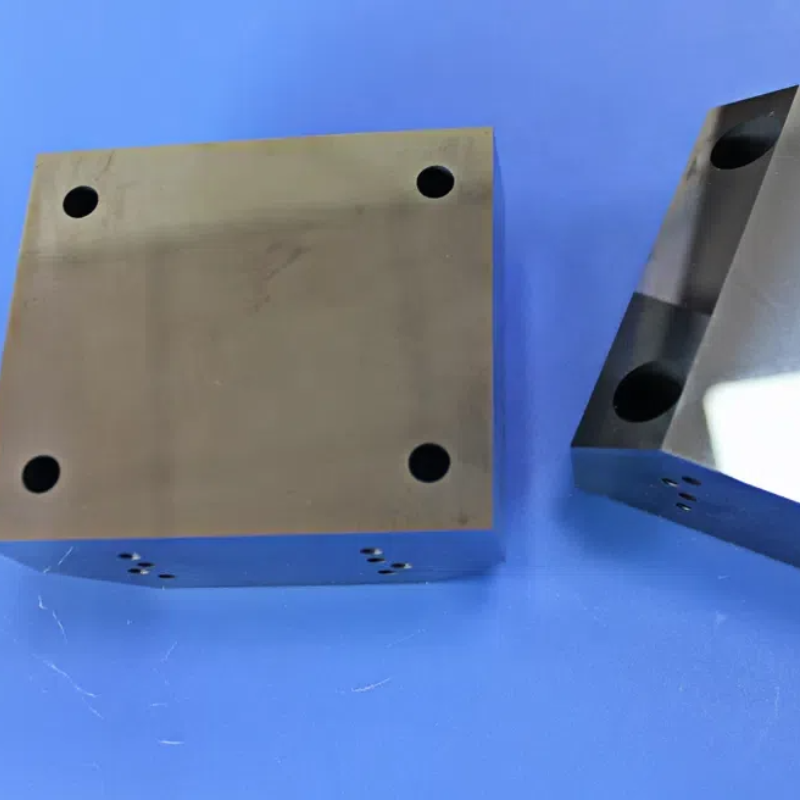

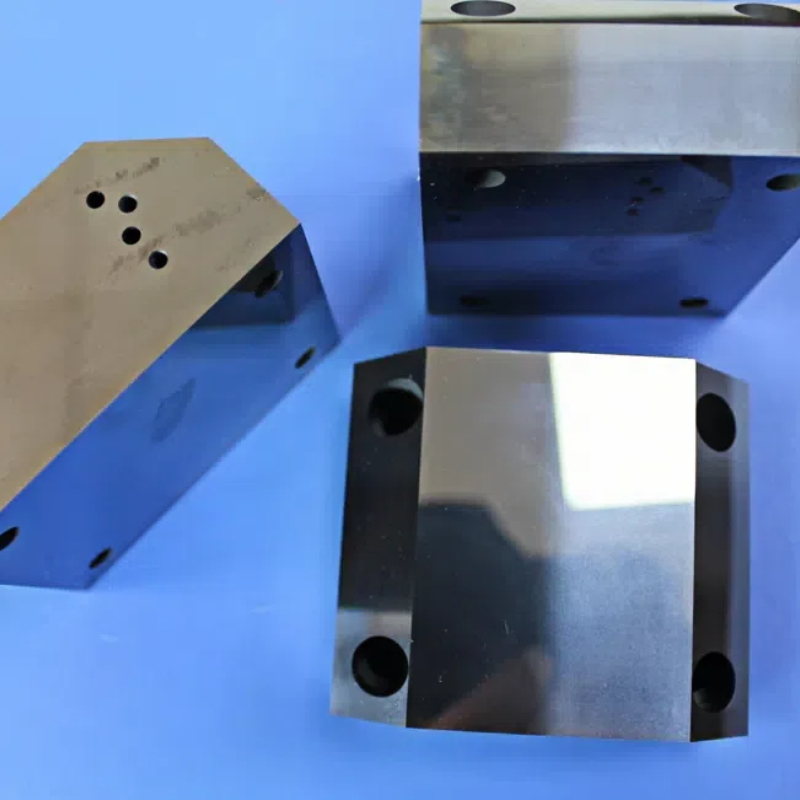

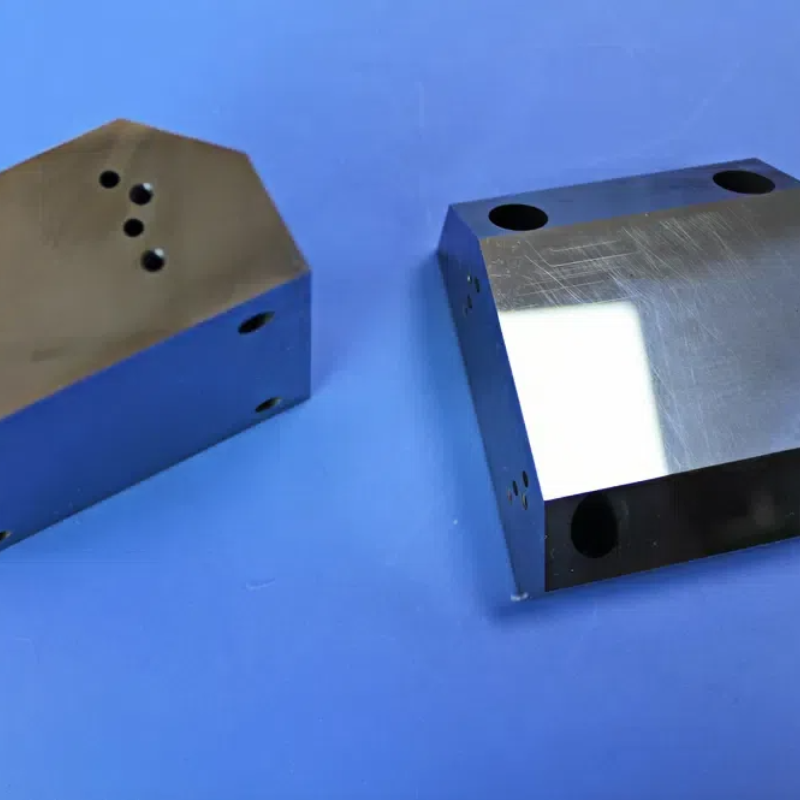

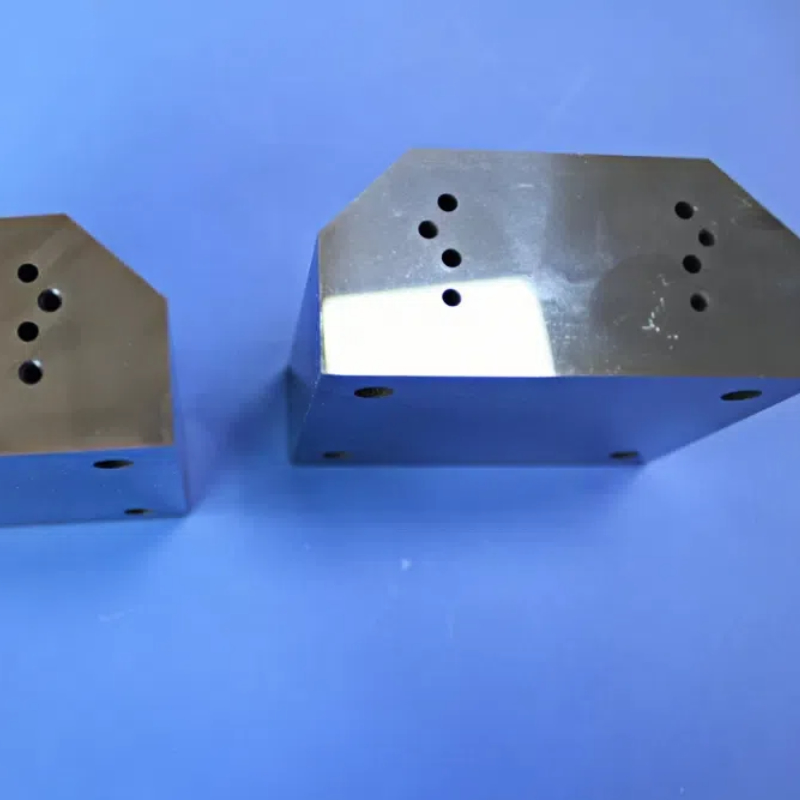

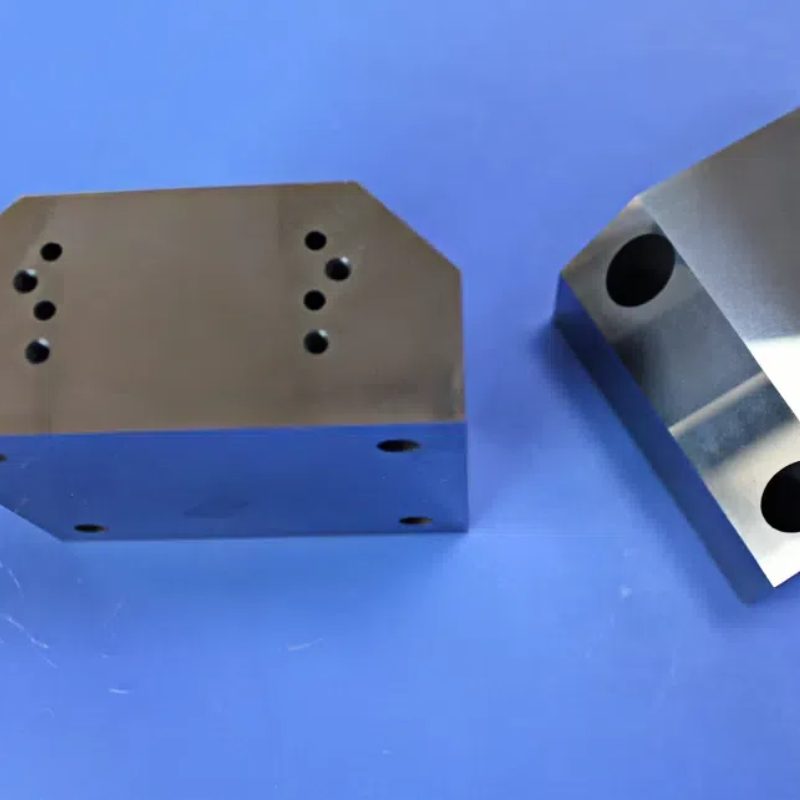

WC-Ni Zero-magnetic-interference Non-magnetic Tungsten Steel Slider
For Semiconductors And Medical Devices
This non-magnetic tungsten steel slider is specifically developed for high-precision applications in semiconductor equipment and medical instruments. Utilizing a special WC-Ni non-magnetic formula with precision grinding and mirror polishing technology, it achieves stable linear motion with zero magnetic interference, low friction, and high precision in sensitive working environments.
Breakthrough Applications of Non-Magnetic Materials
Material Composition
  • WC-10Ni Non-Magnetic Hard Alloy
Magnetic Properties
  • Permeability: <1.002
  • Remanence: <0.05 mT
  • Coercivity: <10 A/m
Physical Properties
  • Hardness: 90-92 HRA
  • Density: 14.8-15.0 g/cm³
  • Coefficient of Thermal Expansion: 5.5*10⁻⁶/K
  • Coefficient of Friction: 0.15-0.18 (with chrome-plated rails)
Manufacturing Excellence
Machining Process
  • Five-sided precision grinding
  • CNC machining
  • Diamond grinding mirror finish
Precision Specifications
Flatness ≤0.003mm/100mm
Parallelism ≤0.005mm
Surface Roughness Ra 0.2-0.4μm
Dimensional Tolerance ±0.002mm
Performance Comparison Analysis
Performance Indicators Non-magnetic tungsten carbide slider Stainless steel slider Traditional tungsten carbide slider Core Advantages
Magnetic Permeability <1.002 1.02-1.05 1.5-2.0 Completely eliminates magnetic interference
Hardness 90-92 HRA 70-90 HRB 89-91 HRA 3 times better wear resistance
Service Life >1000km 200km 800km 5 times longer service life
Coefficient of Friction 0.15-0.18 0.25-0.35 0.18-0.22 Smoother operation
Corrosion Resistance Excellent Good Good Suitable for harsh environments
Reference only
WC-10Ni Non-Magnetic Hard Alloy Tungsten Steel Slider with Permeability <1.002 and Remanence <0.05 mT for Semiconductor Equipment 0
