Informazioni dettagliate
Descrizione di prodotto

Informazioni dettagliate
Resistenza chimica:	Resistente alla maggior parte degli acidi e delle alcaline	Nome prodotto:	Trasformazione del carburo di tungsteno
Dimensione del foro:	1.6 Foro interno	Caratteristiche:	Eccellente resistenza all'usura e alla corrosione
Punto di fusione:	2,870°C	Granulometria:	Da submicron a diversi micron
Resistenza alla flessione:	2.000 MPA	Tipo di attività:	Produttore
Precisione:	0,001 - 0,01 mm	Resistenza alla trazione:	Fino a 1400MPa
Caratteristica:	Resistenza all'usura	Inerzia chimica:	Alto
Evidenziare:	Non-Magnetic Alloy Mold Insert , 87.5 HRA Hardness Injection Mold Core , Precision 0.001mm Tungsten Carbide Mold Core

Descrizione di prodotto

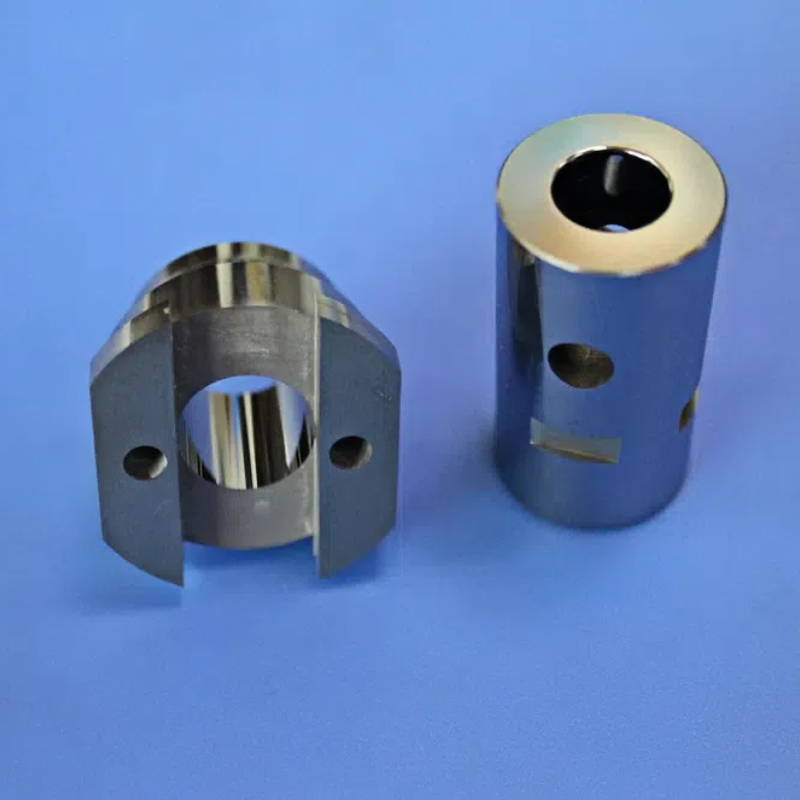

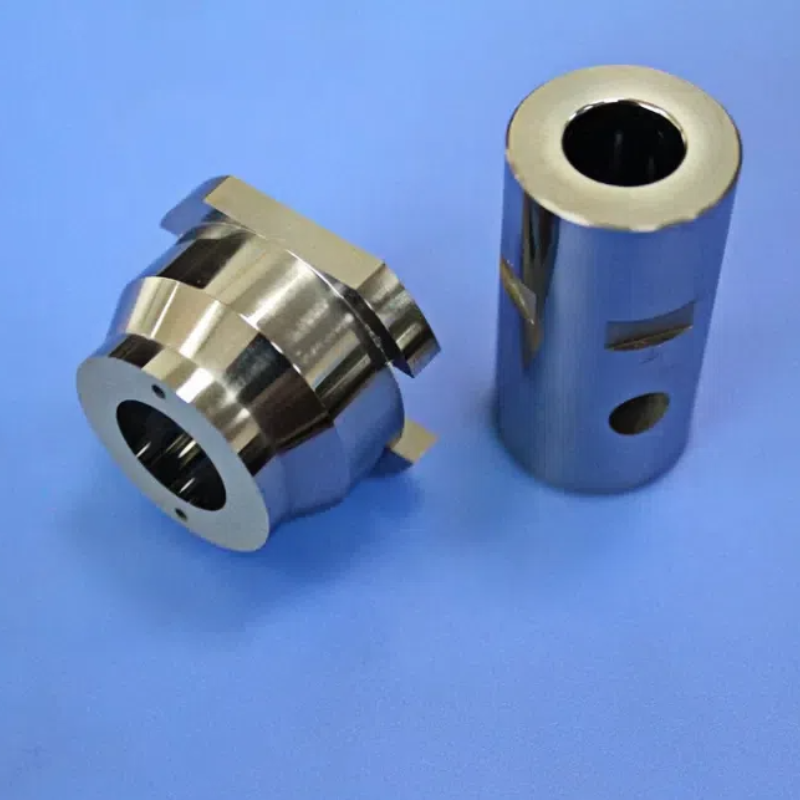

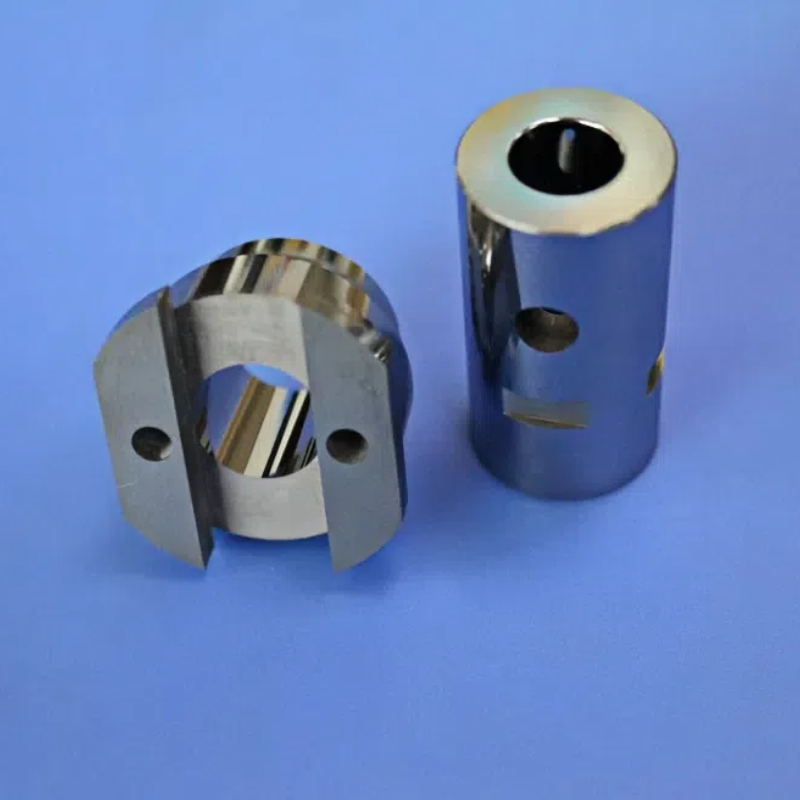

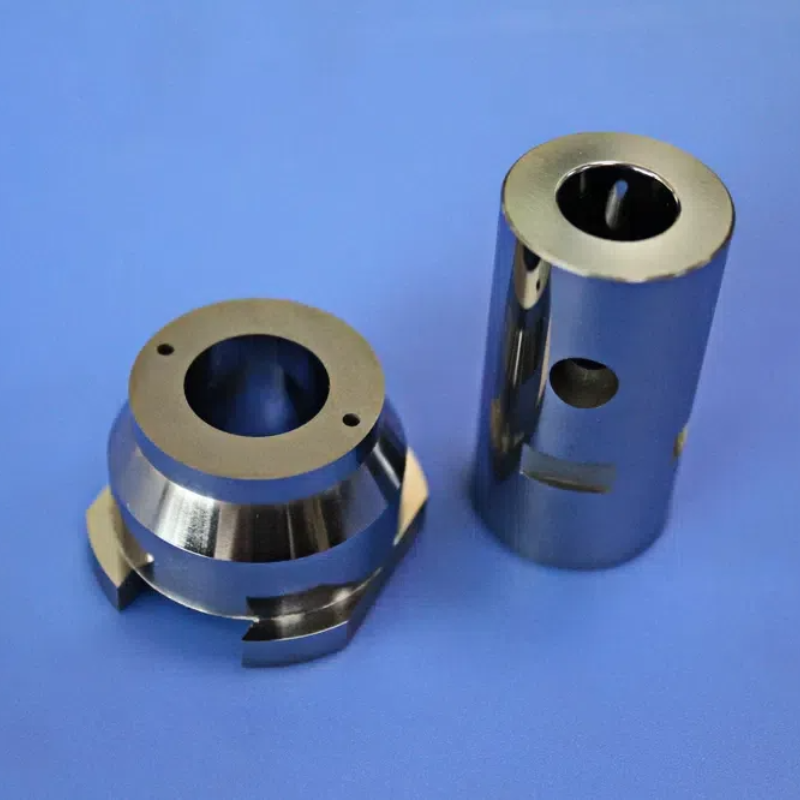

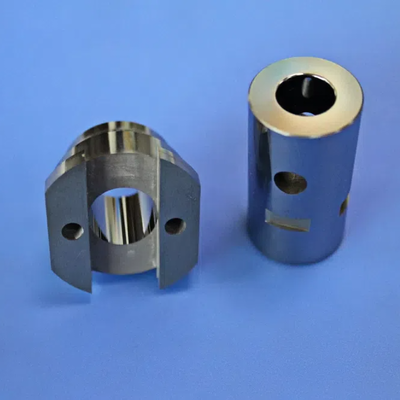

HRA 87.5 Non-Magnetic Alloy MV Series Mold Insert Precision Injection Mold Core For Sensitive Applications

The HRA 87.5 Non-Magnetic MV Series Mold Insert is engineered to meet critical manufacturing challenges. This performance-critical component is designed for applications where absolute non-magnetic properties, consistent hardness, and superior wear resistance are essential for maintaining flawless production cycles and part integrity.

Core Technology & Design Advantages

Optimized Material Performance (HRA 87.5): The specific hardness rating of 87.5 HRA represents a meticulously balanced formulation that provides significantly higher wear resistance than tool steel while maintaining superior toughness and crack resistance compared to harder, more brittle carbides.
Guaranteed Non-Magnetic Property: Utilizing a specialized nickel-based binder system, this insert is completely free of iron and cobalt with magnetic permeability (µ) < 1.002, ensuring zero magnetic attraction or interference for sensitive applications.
Thermal & Chemical Stability: Excellent dimensional stability across injection molding temperature ranges and high resistance to corrosion from engineering plastics and cleaning agents.

Technical Specifications & Data

Parameter	Specification / Capability
Core Material	Non-Magnetic Hard Alloy (WC-Ni based or equivalent)
Hardness	87.5 HRA (Guaranteed, with tight batch-to-batch consistency)
Magnetic Permeability (µ)	< 1.002 (Certifiable per batch)
Key Tolerances	Core Dimensions: ±0.005mm (Standard), ±0.002mm (Precision) Cavity Profile: As per customer drawing, achievable to ±0.003mm
Surface Finish	Standard: Ra 0.4 µm \| High-Grade: Ra 0.1 µm or better (Optical Polish)
Standard Applications	Micro-gears, sensor housings, connector components, medical device parts, optical lens mounts

Target Industries

Industry	Problem Solved by Our MV Insert	vs. Traditional Steel Insert
Medical Device Molding	Eliminates risk of magnetic contamination in implantable or MRI-compatible part molds. Offers 3-5x longer life molding abrasive bio-polymers.	Potential for trace magnetism; requires frequent polishing/replacement.
Precision Electronics & Connectors	Exceptional wear resistance maintains critical pin alignment and contact cavity dimensions over millions of cycles. Non-magnetic ensures no interference with final component function.	Dimensional wear leads to increased scrap rates. Possible residual magnetism in sensitive components.
Optical & Consumer Electronics	Capable of ultra-high polish (Ra <0.1µm) for glossy finishes. Hardness prevents scratches and wear from glass-filled plastics.	Polish degrades faster; surface defects can appear over production runs.

Our Commitment

Certified Performance: Each batch can be supplied with material certification and hardness test reports.
Advanced Manufacturing & Finishing: State-of-the-art CNC grinding, EDM, and polishing technology to achieve precise geometries and surface finishes.
Full Customization & Support: Engineering solutions based on your part drawing, material, and production volume with technical consultation.
Global Supply Chain Reliability: Reliable lead times, professional export documentation, and responsive communication for international customers.

Prodotto Tag:

Dettagli:
Luogo di origine:	Cina
Marca:	Sanxin
Certificazione:	ISO
Numero di modello:	SX1289
Termini di pagamento e spedizione:
Quantità di ordine minimo:	2
Tempi di consegna:	5-25 giorni
Termini di pagamento:	L/C,T/T,Western Union
